Product model: CCFJ-1600

It is suitable for the overturning disassembly of discarded cars. The maximum overturning angle is 90 degrees. It is equipped with a 1000kg overweight cantilever machine. The rotating arm can rotate in 180 degrees.

The Use and Characteristics of Machines

This machine is mainly used for overturning and disassembling of abandoned cars. In order to disassemble the parts at the bottom of abandoned cars easily, the machine first tightens the car to be disassembled, then turns over. The maximum overturning angle is 90 degrees. At the same time, a 1000kg cantilever crane is equipped for handling large parts which are easy to disassemble. The arm of this machine can rotate in 180 degrees.

The machine is simple in structure and easy to operate. It can easily disassemble the bottom parts of discarded cars, effectively improve work efficiency, and the cantilever crane is convenient to carry and classify the heavy parts disassembled.

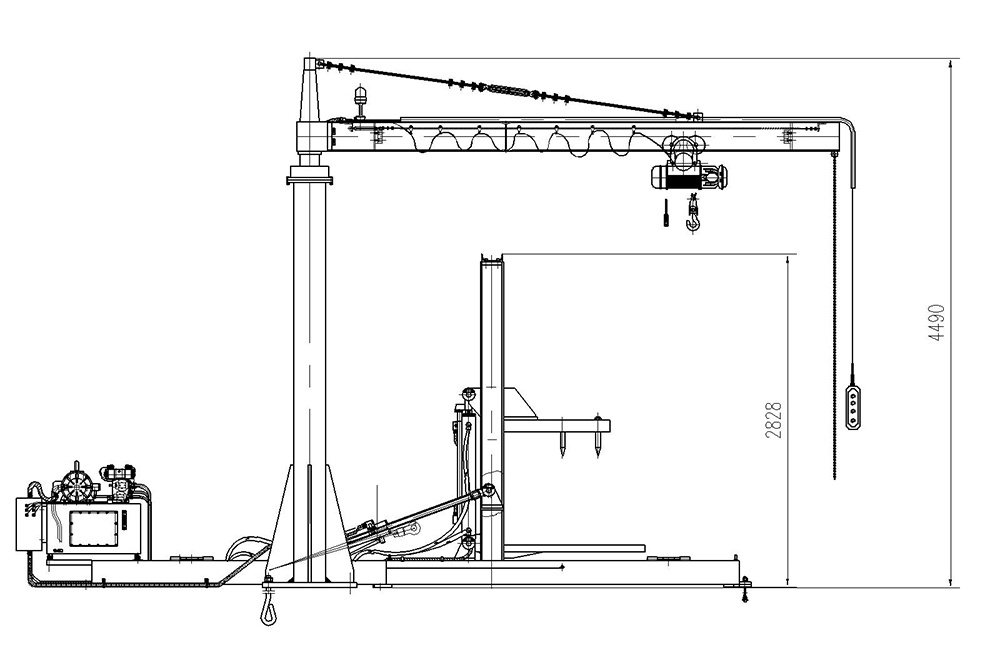

Turner Turner Turner

Automobile Turner

QT1-80		Unit	Parameter	Remarks
Nominal pressure	Compression cylinder	KN	100	10t
	Turn-over cylinder	KN	100	10t
Maximum working pressure of liquid level		MPa	21
Maximum Lifting Weight of Cantilever Crane	Y100L1-4	kg	1000
Rotation angle of cantilever crane	degree	0~180
Dimensional range of car body for disassembly	L	mm	≤5500
	W	mm	≤1800
	H	mm	≤1700
Disassembly weight range		kg	≤1200
Maximum flip angle		degree	90
Motor power		KW	7.5
Outline Dimensions of Motor Power Machines		mm	5020×7150×4490
Machine weight		kg	4930
The above standards and specifications are for reference only. We reserve the right to make adjustments according to the actual situation.
